PRESSURE SWITCHES SPDT
In industrial and automotive applications, it is frequently necessary that, when the pressure setting is reached, this is converted into an electrical signal that starts a machine cycle or indicates a certain situation (e.g. system leaks or alarms). These operations are generally controlled by components, called PRESSURE SWITCHES, that are calibrated according to the specific application.

27N - 28N Diaphragm pressure switch - adjustable hysteresis - SPDT contacts
VS
Compare this product with other Pressure switches

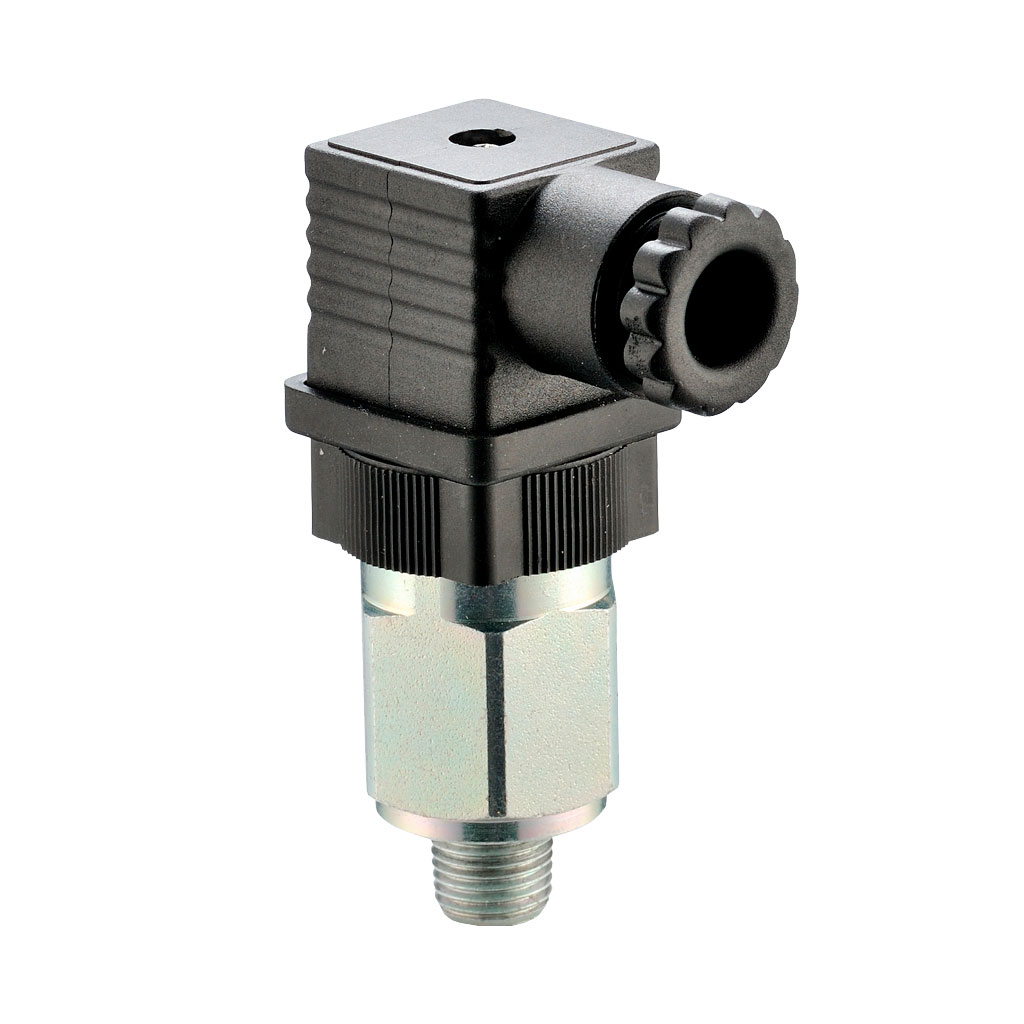

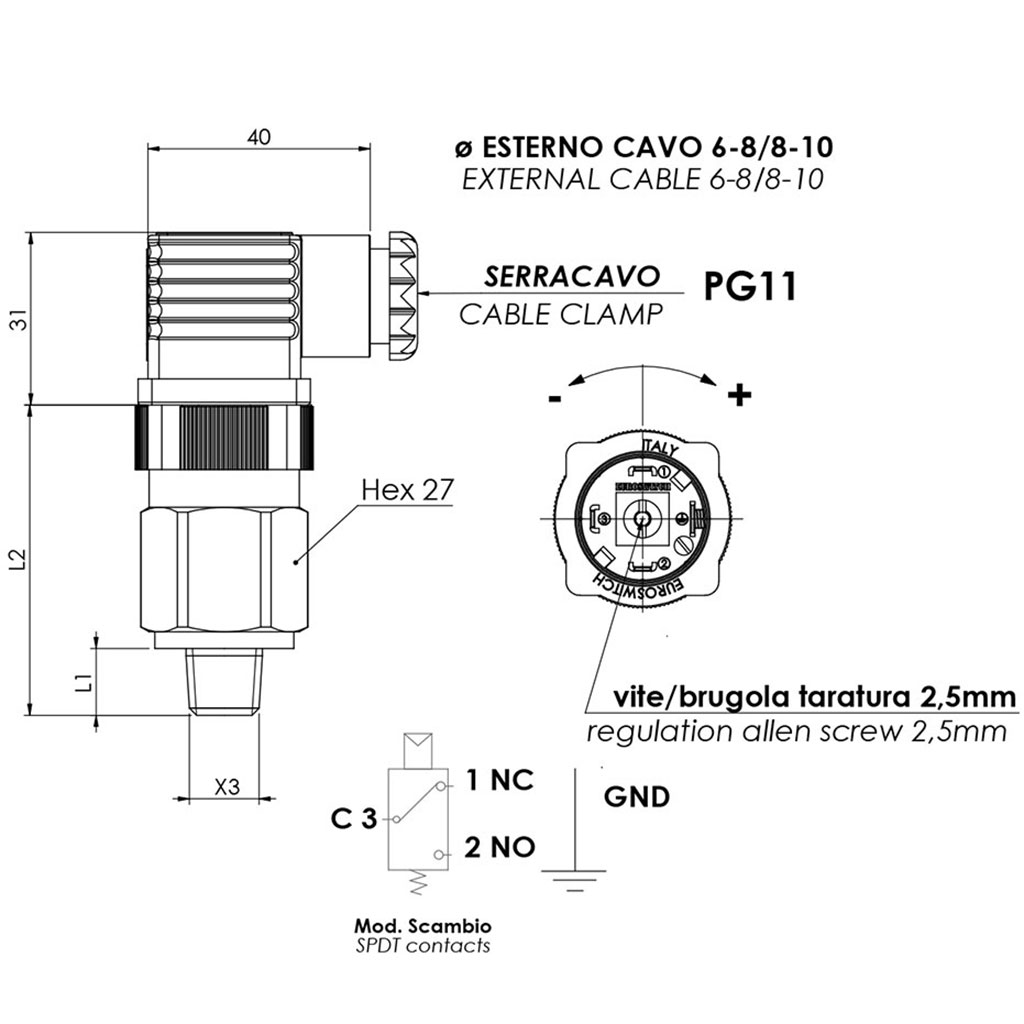

27N - 28N Diaphragm pressure switch - adjustable hysteresis - SPDT contacts
Sensitive element
Diaphragms/Piston
Setting range
0,3 - 400 bar
Contact type
SPDT
Contact rating
6(2) A / 250 Vac
Electrical connection
Connector UNI EN 175301-803 (DIN 43650) IP65
