They come in three main types:
- with NORMALLY OPEN (NO) (SPST) electrical contacts
- with NORMALLY CLOSED (NC) (SPST) electrical contacts
- with (SPDT) SWITCHING contacts

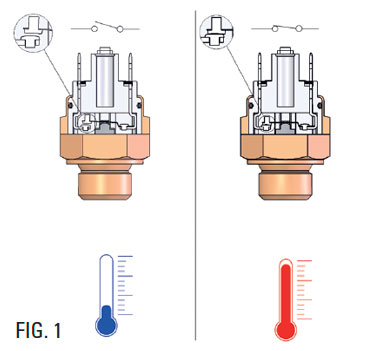

In the NORMALLY OPEN (NO) version (Fig. 1), the contact is open, i.e. there is no flow of current in the absence of temperature. When the temperature setting is reached, the electrical contact closes.

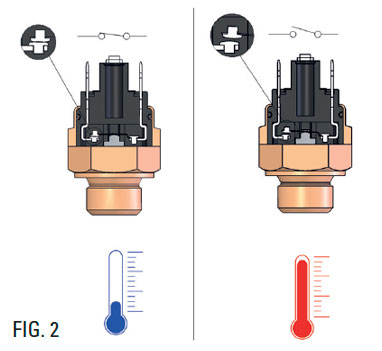

Figure 2 shows a thermostat with NORMALLY CLOSED (NC) contacts in the absence of temperature. We can see that the contacts are closed and the signal is present on the external contacts. When the temperature setting is reached, the electrical contact rises and interrupts the signal.

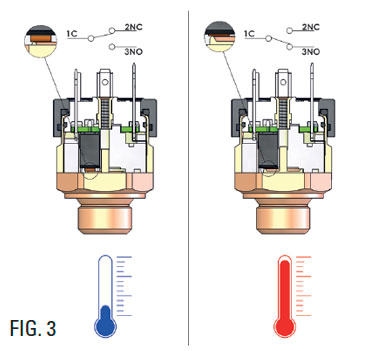

In the SWITCHING CONTACT (SPDT) versions (Fig. 3), the temperature of the fluid on the separating element causes a microswitch to switch over. Either NC or NO contacts, or both, can be used in this version.
Conditions of use
Suitability for the intended use must be verified according to the specific fluid and normal operating conditions.
